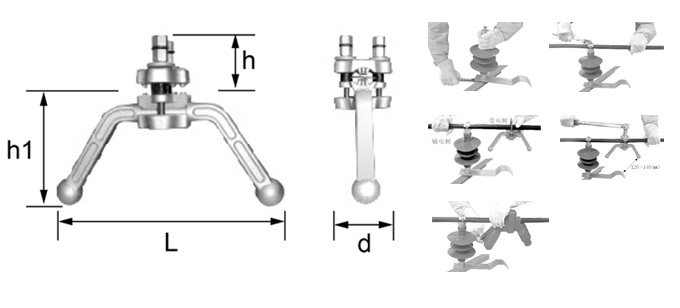

規格及技術參數
型號
Catalog
No. |
導線截面
(mm2)Section
of conductor |
導體直徑
Diameter of
conductor |
絕緣層外徑Outer diameter
of insulating layer |
d |
h |
h1 |
L |
薄型Thin type |
普通型Common type |
FHJ-70-120 |
70 |
10.5 |
15.0 |
17.8 |
73 |
60 |
115 |
240 |
95 |
11.6 |
16.0 |
19.6 |
73 |
60 |
115 |
240 |
120 |
13.0 |
18.0 |
21.0 |
73 |
60 |
115 |
240 |
FHJ-150-240 |
150 |
14.6 |
19.6 |
22.6 |
73 |
60 |
115 |
240 |
185 |
16.2 |
21.2 |
24.2 |
73 |
60 |
115 |
240 |
240 |
18.4 |
23.4 |
28.4 |
73. |
60 |
115 |
240 |
■ 規格及技術參數 Specification
10kV架空絕緣導線 |
主要尺寸 |
型號 |
導體面積2 |
絕緣層外徑 |
導體直徑 |
d |
h1 |
h2 |
L |
FHJ-25~120A |
25 |
14.8 |
6.0 |
74 |
500 |
106 |
132 |
35 |
15.8 |
7.0 |
74 |
50 |
106 |
132 |
50 |
17.1 |
8.3 |
74 |
50 |
106 |
132 |
70 |
18.8 |
10.0 |
74 |
50 |
106 |
132 |
95 |
20.4 |
11.6 |
74 |
50 |
106 |
132 |
120 |
21.8 |
13.0 |
74 |
50 |
106 |
132 |
FHJ-150~240A |
150 |
23.4 |
14.6 |
74 |
50 |
106 |
132 |
185 |
25 |
16.2 |
74 |
50 |
106 |
132 |
240 |
27.2 |
18.4 |
74 |
50 |
106 |
132 |
10kV架空絕緣導線 |
主要尺寸 |
型號 |
導體面積2 |
絕緣層外徑 |
導體直徑 |
d |
h1 |
h2 |
L |
FHJ-25~120A |
25 |
18.2 |
6.0 |
74 |
50 |
106 |
132 |
35 |
19.2 |
7.0 |
74 |
50 |
106 |
132 |
50 |
20.5 |
8.3 |
74 |
50 |
106 |
132 |
70 |
22 |
10.0 |
74 |
50 |
106 |
132 |
120 |
25.2 |
10.0 |
74 |
50 |
106 |
132 |
FHJ-150~240A |
150 |
26.7 |
11.6 |
74 |
50 |
106 |
132 |
185 |
28.3 |
28.3 |
74 |
50 |
106 |
132 |
240 |
30.6 |
30.6 |
74 |
50 |
106 |
132 |
